50-90% Maximum & Reversible Humidity Indicator Card
Helpful Links
DESCRIPTION

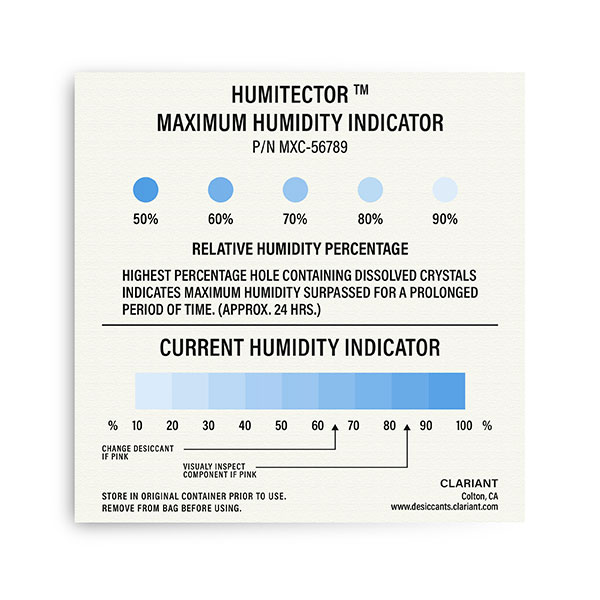

The MXC56789 Maximum Humidity Indicator Card was designed for applications which require monitoring the maximum humidity attained when exposed for a period of 24 hours or more. Each level of humidity indicated on these cards is represented by a blue crystal which dissolves when the relavtive humidity (RH) level exceeds the humidity shown below it. When the crystals dissolve, they create a large blue spot above the indicated humidity.
Example: If the highest humidity level reached is 70% RH, then all circles up to and including 70% will have dissolved crystals and the area surrounding each circle will be stained blue.
ADDITIONAL INFORMATION
Additional information
| Weight | 0.0000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 × 0.0000 in |
| Rectangular Card RH | 50% – 90% |
| Product Size | 4.50" x 4.50" |
| Color | Blue to Pink |
| Card Type | Reversible and Non-Reversible |
| Standard Packaging | 25 per gallon |
| Previous Part Number | MXC56789 |
