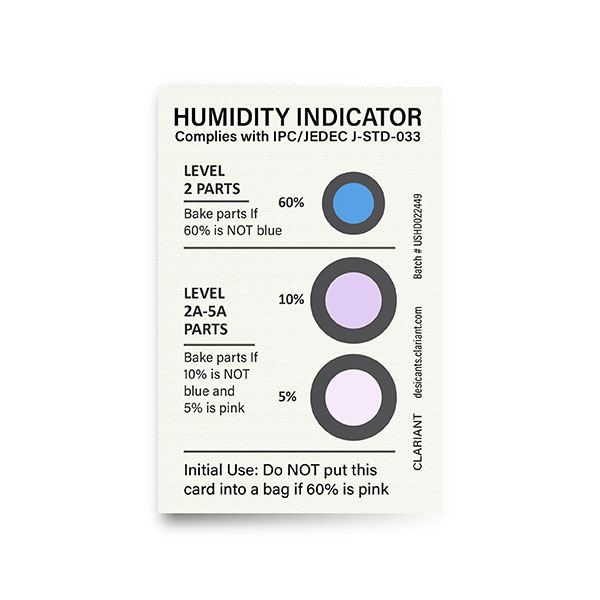

Reversible Humidity Indicator Card - JEDEC STD-0033 Qualified

Description

This reversible color-change Humidity Indicator Card (24873327681) is designed to meet the new version of J-STD-033 (the standard governing the use and testing of Humidity Indicator Cards in the dry packaging of semiconductors). The JEDEC-approved cards adhere to a standard, minimum color-change quality level to ensure accuracy and readability between dry and humid states.

Whereas previous cards used a 5, 10 and 15% relative humidity (RH) spot system to indicate humidity exposure levels for moisture sensitive components, the new cards feature spots indicating 5, 10 and 60%. The change means that cards will now indicate humidity exposure for Level 2 MSL devices.

Additionally, a positive reading on the 60% spot indicates that cards should not be reused, as the high level of humidity to which the card has been exposed will jeopardize the accuracy of low readings (5% RH).

Additional information

Rectangular Card RH

5% 10% 60%

Standard Packaging

125 per pint

Card Type

Reversible

Previous Part Number

200005295

Product Size

2.00" x 3.00"

Complies With

JEDEC STD J-STD-0033

Color

Blue to Pink
