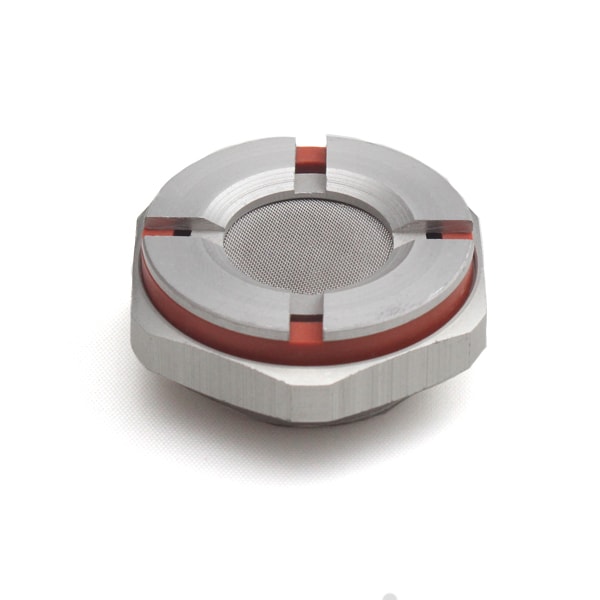

Screened Drain Vent TA245

Description

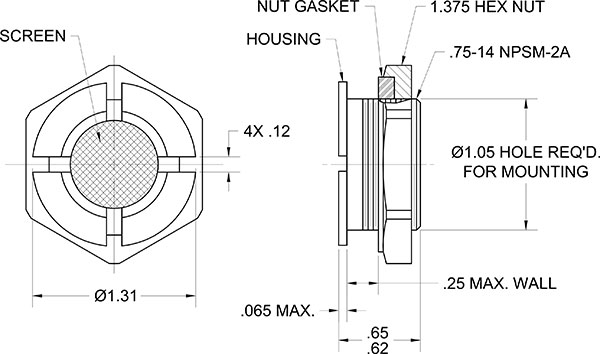

The TA245 Screened Drain Vent can be mounted at the base of a container allowing the container to drain while a 100 x 100 mesh screen keeps bugs out.  Plug has channels that allow the container to completely drain without requiring the plug to be recessed into the container floor, simplifying the mounting process.  Installs in 1.05" diameter hole.

Note: Other mesh sizes available upon request.

MaterialsAluminum Alloy
FinishClear anodize
Installation Torque30 in. - lbs. (3.4 N•m)
Weight0.034 lbs. (15.22 grams)

AGM's TA245 Screened Drain Vent (plug) is mounted at the base of a container allowing the contents to drain while a 100 x 100 mesh screen keeps bugs out.

Additional information

Materials

Aluminum Alloy

Finish

Clear Anodize

Installation Torque

30 in. - lbs (3.4 N-m)

Weight

0.034 lbs (15.22 grams)
