AGM’s Machine Shop in Tucson

Superior Quality and Precision

Rise Above the Competition with AGM:

AGM is opening up its CNC machining services to the public and forming a new division called AGM Precision Machining. Now, the same facilities that have made AGM a leading supplier of OEM parts to the Aerospace and Defense industries since 1970 are ready to take your project to the next level.

AGM combines its 47-years of design and manufacturing experience with an extensive, full-service machine shop complete with CNC and CMM machines and the latest modeling software to provide the exceptional quality you need.

Precision Excellence

AGM’s standard precision accuracy is +/- .001, and tighter tolerances are available on request.

The Latest Design Software

  • FeatureCAM®
  • BobCAD®
  • SOLIDWORKS®

Quality Finishes

Standard Finishes Custom Process Finishes
AGM provides standard as-milled finishes to all parts unless otherwise requested. Standard finishes are provided with a 125 RMS. Upon request, AGM will provide parts with conversion coating, anodizing, and other specified finishes. Custom finishes may be provided to 16 RMS.

Machine Shop Compatible Materials

Metals Plastics
Aluminum ABS
Steel Acrylic
Tool Steel Delrin®
Stainless Steel Teflon®
Brass

AGM’s Machine Shop

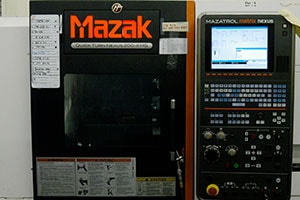

The machine shop utilizes a number of Mazak CNC machines for their machining services.

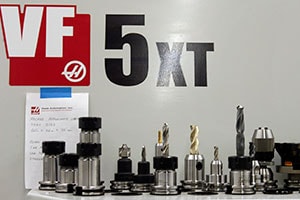

AGM's Machine Shop utilizes a number of Haas CNC machines for their machining services.

CNC Machines

(3) Mazak QT 200-II MSY Turning Centers: Mazak QT 200-II MS Turning Center: Mazak QT 250-II MSY Turning Center:
Capacity: Max machining diameter 13.78″ (350 mm) with sub spindle, live tooling and Y-axis.

2.5″ (63 mm) bar capacity; 5,000 RPM main spindle
Capacity: Max machining diameter 13.78″ (350 mm) with sub spindle and live tooling.

2.5″ (63 mm) bar capacity; 5,000 RPM main spindle.
Capacity: Max machining diameter 13.78″ (350 mm) with sub spindle and live tooling.

3.0″ (75.5 mm) bar capacity; 5,000 RPM main spindle.


(2) Haas VF5-XT Vertical Machining Center: Haas VF-3YT Vertical Machining Center: Haas VF-3SSYT Vertical Machining Center:
Work envelope capacity: X axis 60″ (1,524 mm) x Y axis 26″ (660 mm) x Z axis 25″ (635 mm).

Max table weight: 4,000 lbs. (1,814 kg).

8,100 RPM spindle; 4th Axis.
Work envelope capacity: X axis 40″ (1,016 mm) x Y axis 26″ (660 mm) x Z axis 25″ (635 mm).

Max table weight: 3,500 lbs. (1,588 kg).

8,100 RPM spindle; 4th Axis.
Work envelope capacity: X axis 40″ (1,016 mm) x Y axis 26″ (660 mm) x Z axis 25″ (635 mm).

Max table weight: 3,500 lbs. (1,588 kg).

12,000 RPM spindle, 4th Axis.


Conventional Machines

Haas TL-1 Tool Room Lathe (3) Bridgeport Mills Chevalier Surface Grinder
Max diameter: 16″ (406 mm), Max Length 29″ (737 mm). 6″ x 16″.

Request a Quote

For more information about any of AGM’s services or to request a free consultation, contact AGM Precision Machining at (520) 561-8410, or send us an email here.
